Single Twist Stranding Line
The 2.2m and larger machines may produce up to 61 wires or 1000Kcm / 500mm2
Process Lines

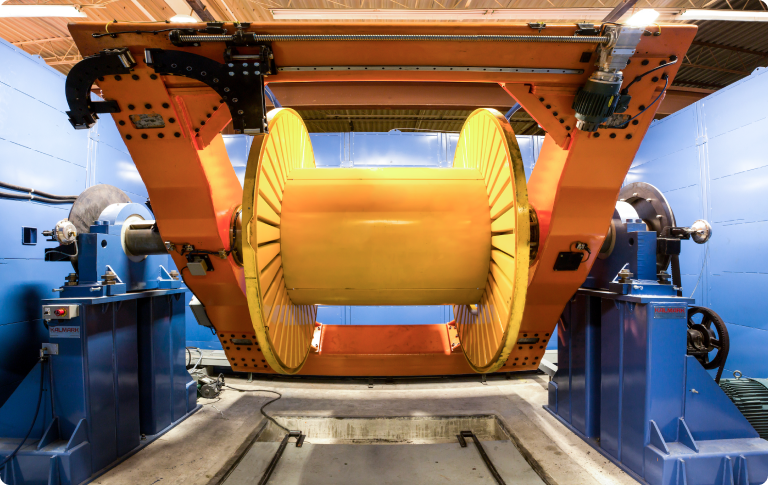

Single Twist Stranding Line
This Single Twist Stranding Line delivers reliable performance, achieving up to 200 RPM rotational speed and line speeds of up to 75 meters per minute, ensuring efficient and consistent cable production.
Designed to produce 53-wire SIW designs, this machine offers a cost-saving alternative to 37-wire and 61-wire cables, maintaining performance while reducing material costs.
Specifications
Can be used for the following applications and may be produced to a variety of specifications.
Input Size Range
1mm to 4mm
Input Material
Aluminum
Compacting Method
Roll forming of individual strands
Finished Product Size
95 to 400 mm sq.
Max DIA Stranded Product
31 mm
Stranding Lay Range
50 to 300 mm
Lay Control
Digital Sync via Motion Controller
can be used for a wide range of applications, including the production of power cables, data transmission cables, and specialty cables. It is highly versatile and can be customized to meet various specifications, allowing for flexibility in different manufacturing processes.
1
Aluminum Conductor Steel.
2
Reinforced (ACSR) using a single or stranded steel core.
3
Aluminum Conductor Composite Core (ACCC) using composite type core
4
Single Input Wire (SIW) with roll formed shaped Trapezoidal Wire (TW) compact strand.
5
Cabling of insulated cores of conductor size up to 4/0 AWG or 95 mm2
6
The optional Roll Form wire shaping system may form from two (2)
7
The number of Roll form layers is determined by the strand design of each application
8
Round (R) wire may be combined with Trapezoidal Wire (TW) to create the strand construction
